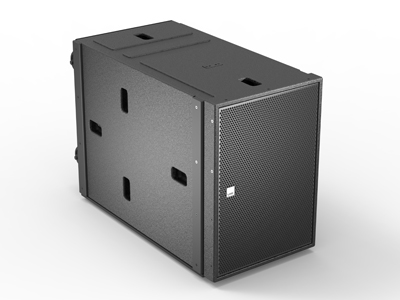

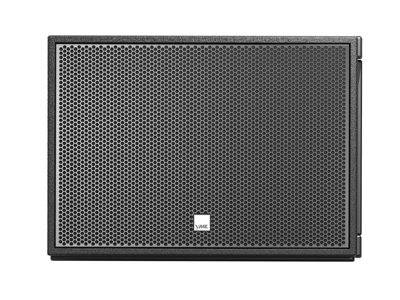

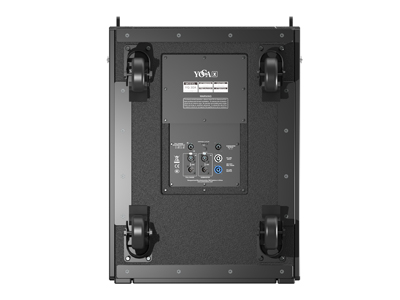

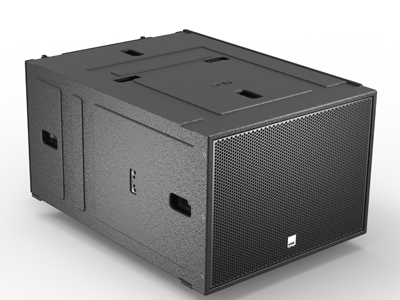

YG SUBADUAL 18" ACTIVE SUBWOOFER SPEAKER
YG SUBA is the active version of YG SUB.
YG SUBA is driven by a highly powerful multi-channels D class switching power amplifier module (2 X 2500W@4Ω), The amplifier module is developed by exceptional analog circuit technology which is without unwanted DSP treatment. It delivers powerful and dynamic extra low frequency output. The built-in analog limiter make the system well-protected and truly plug and play.
YG SUBA is driven by a highly powerful multi-channels D class switching power amplifier module (2 X 2500W@4Ω), The amplifier module is developed by exceptional analog circuit technology which is without unwanted DSP treatment. It delivers powerful and dynamic extra low frequency output. The built-in analog limiter make the system well-protected and truly plug and play.

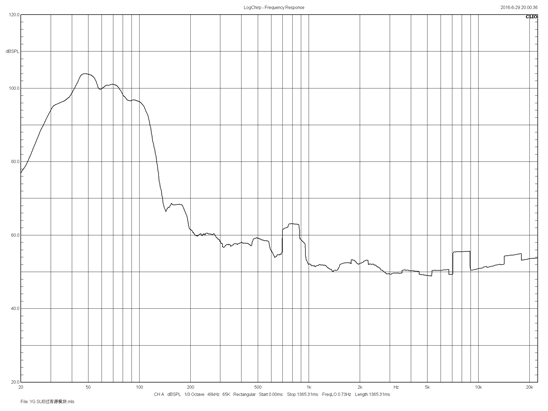

| Frequency Response | 30Hz - 100Hz (± 3dB) |
| 25Hz - 120Hz (-10dB) | |
| Sensitivity (@1w / 1m) | 101dB |
| Power Rating (AES) | 1600W |
| LF Driver | 2x18 "(100mm voice coil), Ferrite |
| Maximum SPL | 133dB SPL, 139dB SPL peak |
| Dimensions (H x W x D) | 740x535x1151(mm) |
| Weight | 90kg |
| Connection | XLR+POWERCON+SPEAKON |
| Enclosure | 15mm, 18mm, 24mm Multilayer birch plywood |
| Finish | Black polyurethane paintwork |
| Grille | Black steel mesh + acoustic transparent cloth |
| Three-Channel Class D Switching Power Amplifier Module: | |||
| SUB channel 1 | SUB channel 2 | ||
| 4Ω | 2500W | 2500W | |
| Total Harmonic Distortion (1Khz, Full Power 4Ω) | ≤1% | ≤1% | |
| SNR | 103dB | 103dB | |
| Active Gain (1KHz, 8Ω) | 32dB | 32dB | |
| Input | Neutrik & male XLR & female XLR | ||
| Input Impedance | 20K Ω balanced / 10K Ω unbalanced | ||
| Input Connection (Full-Range) | Neutrik NL4 (1+/1-: LF / 2+/2-: HF) | ||
| Input Connection (Sub) | Neutrik NL4 (1+/1-: SUB) | ||
| Output Circuit Type | Class D | ||
| Cooling | The airflow direction is from the back to the front of the equipment | ||
| Voltage Requirements | 200-240V ~ 50-60Hz | ||
