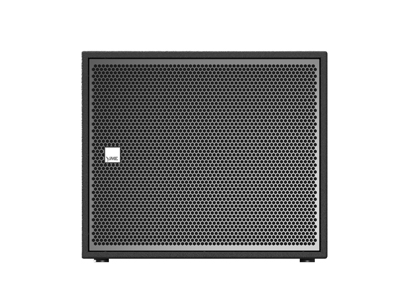

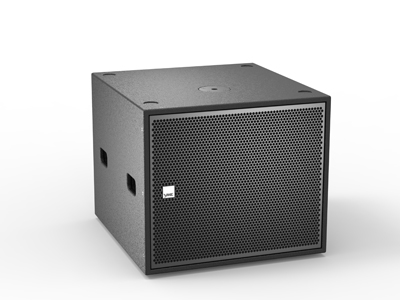

VS 15BSINGLE 15" PASSIVE SUBWOOFER SPEAKER
VS 15B is a single 15” bass passive bass speaker which is specially designed for small touring or install application where need high quality low frequency output.
A 15” (75 mm voice coil ) high performance woofer with special rubber-edged paper cone delivers ultra low frequency down to 45Hz (± 3dB) with more deepness and dynamics.
Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. Further more, the optional 4 lockable-wheel design offers easy movement.
A 15” (75 mm voice coil ) high performance woofer with special rubber-edged paper cone delivers ultra low frequency down to 45Hz (± 3dB) with more deepness and dynamics.
Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. Further more, the optional 4 lockable-wheel design offers easy movement.

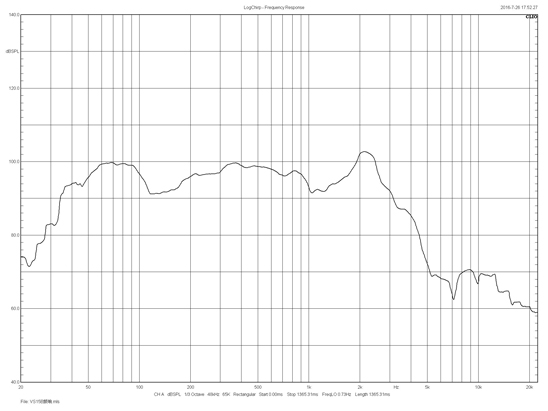

| Frequency Response | 45Hz--120Hz(±3dB) |
| 35Hz--150Hz(-10dB) | |
| Sensitivity（@1w/1m） | 97dB |

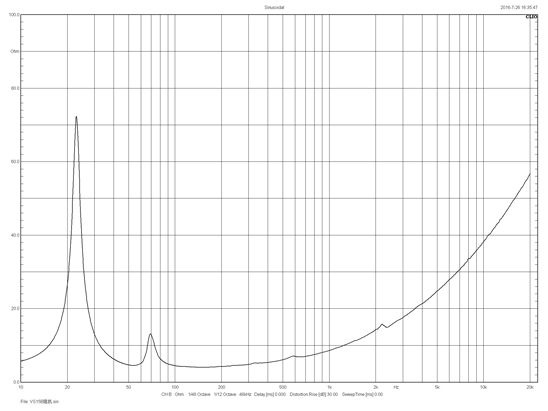

| Nominal Impedance | 8Ω |
| Power Rating（AES） | 600W |
| LF | 1 x 15" woofer(75mm voice coil), Ferrite |
| MAX SPL | 124dB SPL, 130dB SPL Peak |
| Dimension（HxWxD） | 468x545x600(mm) |
| Weight | |

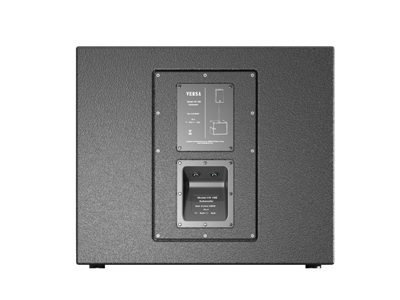

| Connection | 2 x Neutrik NL4MP, LF: 1+1- |
| Enclosure | 15mm, 18mm multilayer plywood |
| Riggings | M8 x 12 + M20 Pole mount |
| Finishing | Black water-based paint |
| Grille | Black steel mesh + acoustic transparent cloth |
