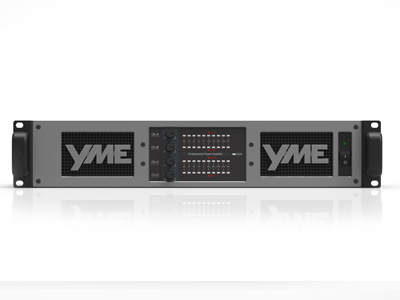

HSA 2500Q1300W X 4CHN SWITCHING POWER AMPLIFIERS

  • HSA 2500Q
HIGH PERFORMANCE 4 CHANNELS SWITCHING AMPLIFIERS



 Number of Channel4
 Total Peak Output of All Channels10000W
 Peak Output Voltage Per Channel150V
 Max Output Current Per Channel50A peak
 Max Output Power All Channels Driven
 16 Ω 660 W
 8 Ω 1300 W
 4 Ω 2100 W
 2 Ω 2500 W
 Max. Output Power Bridged
 16 Ω 2600 W
 8 Ω 4200 W
 4 Ω 5000 W
 2 Ω Not recommended
 THD 20 Hz - 20 kHz @1W  <0.1%
 THD @1 kHz and 1 dB below clipping  <0.05%
 SNR  >112 dB A
 Channel Separation(Crosstalk) @1kHz >70dB
 Input Impedance 20 kΩ
 Output Impedance@100Hz  32 mΩ
 Default Gain35dB
 Operating Voltage230V / 115V nominal 130-265V / 65 -135V Minimum power-up voltage,230V / 115V  171V / 85V
 ConnectorsOutput:4 x 4 pin Neutrik Speakon (NL4)
Input:4 x XLR(balanced)
 Dimension(W x H x D)mm483 x 88(2 U) x 396 mm
 Weight12 kg
