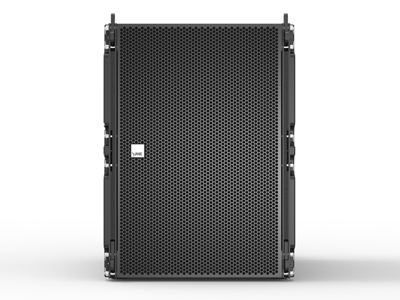

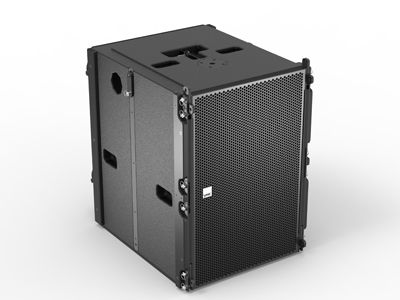

YG 18ADSINGLE 18" ACTIVE BASS SPEAKER
YG 18AD is the active version of YG 18. Thanks to the highly powerful multi-channels D class switching power amplifier module (1 X 1000W@4Ω + 2 X 2500W@4Ω), one active YG 18AD can drive maximum 4 pieces passive YG 65 line array speakers. The amplifier module is developed by exceptional analog circuit technology which is without unwanted DSP treatment. It delivers widely open and crystal clear sound. The built-in analog crossover and limiter make the system well-protected and truly plug and play.

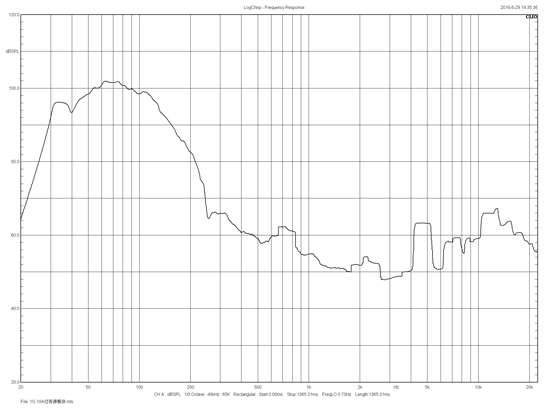

| Frequency Response | 45Hz - 100Hz (± 3dB) |
| 35Hz - 150Hz (-10dB) | |
| Power Rating (AES) | 800W |
| LF Driver | 1x18 "(100mm voice coil), Ferrite |
| Maximum SPL | 127dB SPL, 133dB SPL peak |
| Dimensions (H x W x D) | 750x556x655(mm) |
| Weight | 79kg |
| Connection | XLR+POWERCON+SPEAKON |
| Enclosure | 15mm, 18mm, 24mm multilayer plywood |
| Rigging | Four fly points + pole mounts |
| Finish | Black water-based paint |
| Grille | Black steel mesh + acoustic-transparent cloth |
| Three-Channel Class D Switching Power Amplifier Module | ||||
| HF channel | LF channel | SUB channel | ||
| 4Ω | 1000W | 2500W | 2500W | |
| Total Harmonic Distortion (1Khz, Full Power 4Ω) | ≤1% | ≤1% | ≤1% | |
| SNR | 102.5dB | 103dB | 103dB | |
| Active Gain (1KHz, 8Ω) | 20dB | 32dB | 32dB | |
| Input | Neutrik & male XLR & female XLR | |||
| Input Impedance | 20K Ω balanced / 10K Ω unbalanced | |||
| Input Connection (Full-Range) | Neutrik NL4 (1+/1-: LF / 2+/2-: HF) | |||
| Input Connection (Sub) | Neutrik NL4 (1+/1-: SUB) | |||
| Output Circuit Type | Class D | |||
| Cooling System | The airflow direction is from the back to the front of the equipment | |||
| Voltage Requirements | 200-240V ~ 50-60Hz | |||
